View unanswered posts | View active topics It is currently Wed Jun 28, 2017 8:31 pm
Click button to go to the T2S Template Shop where you can purchase Rich's proven and tested designs.


Reply to topic  [ 24 posts ]  Go to page 1, 2, 3  Next
WL SUP paddle
Author Message
sage
User avatar

Joined: Tue Sep 16, 2008 7:32 am
Posts: 964
Location: Ormond Beach, FL
Reply with quote
Unread post WL SUP paddle
I wanted to make another paddle with a slightly different design. Making paddles is fun to me and doesn't require much in the way of materials. The only wood I needed was a 2x4x8' spruce that was knot free for the most part.

BTW- I know there are some other paddle builders on this forum that make beautiful paddles. Mine won't be one of those because I'm hard on paddles. I don't want to put a whole lot of time into something that I'll probably break or bang up.

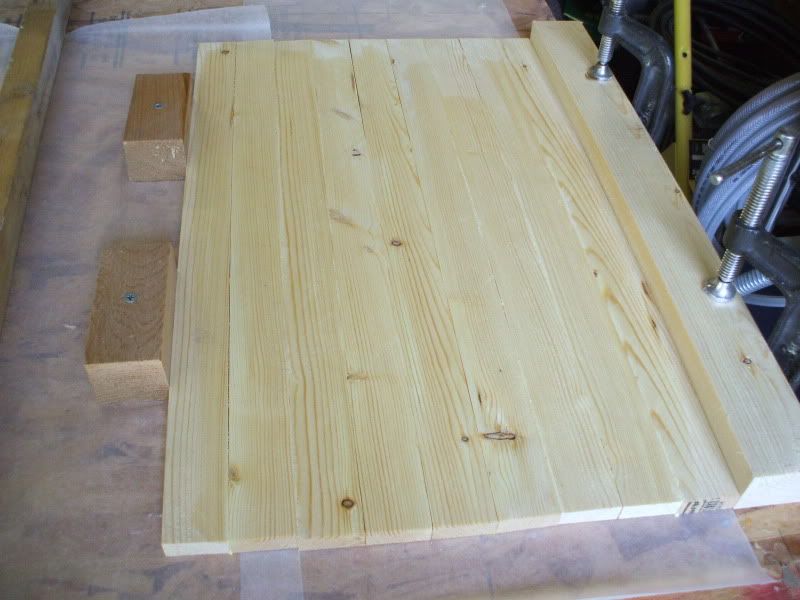

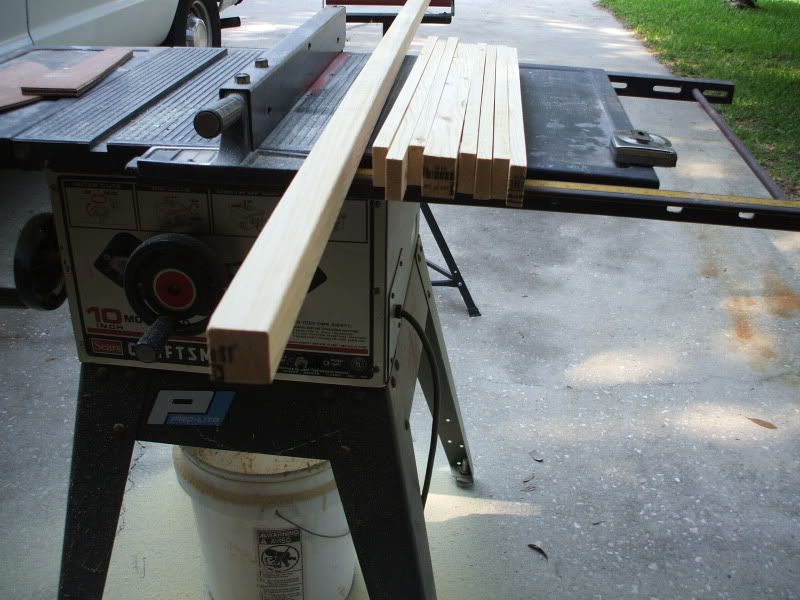

I start by ripping a 1-1/4" x 1-1/4" x 8' piece for the shaft. Next, I use the rest of the 2x and cut it into 20" lengths. These are then ripped into (7) pieces 9/16" x 1-1/2" x 20". I butt glue (Titebond) these for the blade.



_________________
http://woodylogicsurfboards.blogspot.com/

"The worm has definitely turned for you my friend."


Last edited by Boco-Rio on Thu Jun 18, 2009 12:41 pm, edited 1 time in total.



Thu Jun 18, 2009 12:08 pm
Report this post
Profile WWW
sage
User avatar

Joined: Tue Sep 16, 2008 7:32 am
Posts: 964
Location: Ormond Beach, FL
Reply with quote
Unread post Re: WL SUP paddle
There are lots of paddle designs out there and I went with more Hawaiian type blade.


I laid out my 10 degree off-set for the power face and cut the shaft.

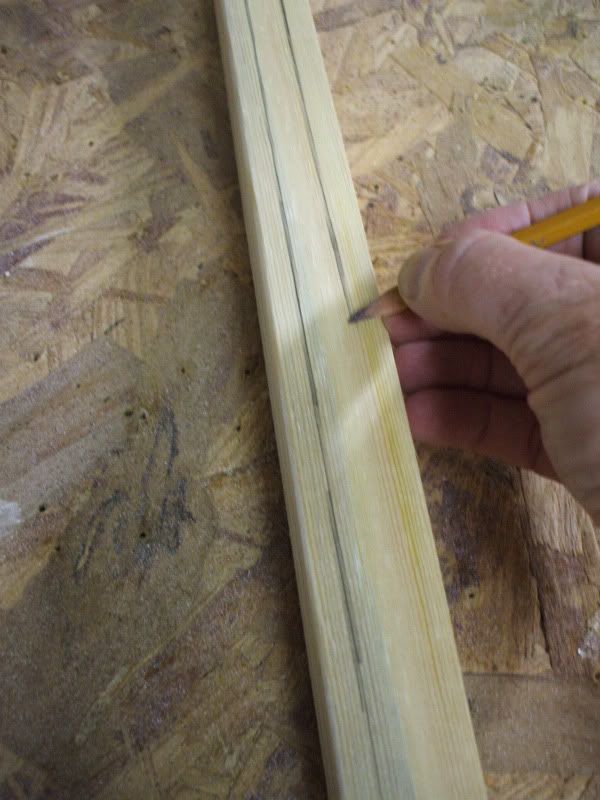

I drew my bevel cut lines (3/8") along the shaft.


_________________
http://woodylogicsurfboards.blogspot.com/

"The worm has definitely turned for you my friend."


Last edited by Boco-Rio on Thu Jun 18, 2009 12:43 pm, edited 1 time in total.



Thu Jun 18, 2009 12:14 pm
Report this post
Profile WWW
sage
User avatar

Joined: Tue Sep 16, 2008 7:32 am
Posts: 964
Location: Ormond Beach, FL
Reply with quote
Unread post Re: WL SUP paddle
I made my bevel cuts on the shaft with a block plane and clean them up with a spoke shave. These don't have to be perfect because this is still rough shaping.

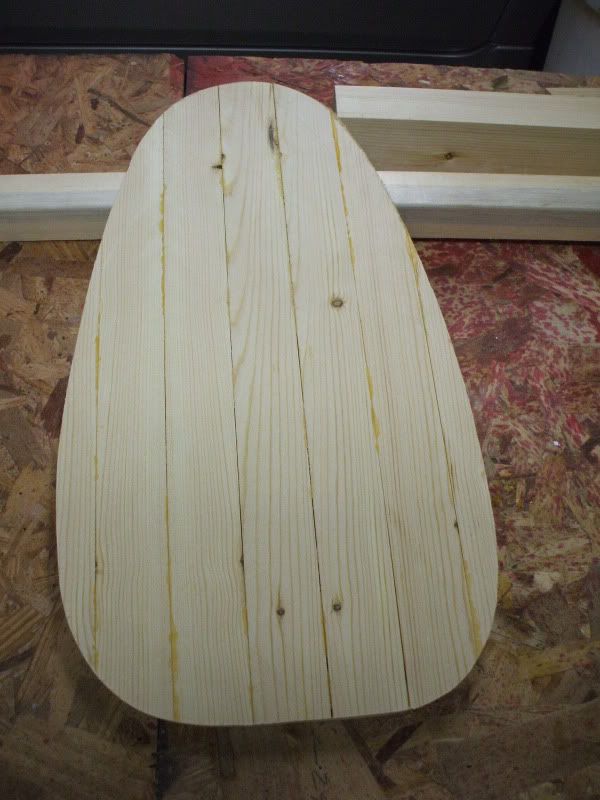

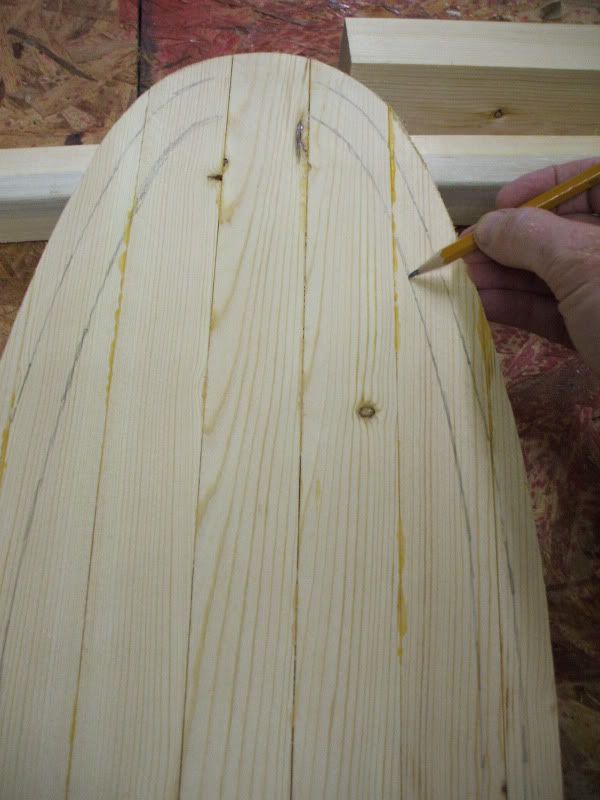

I lay out some lines on the blade for rough shaping.



_________________
http://woodylogicsurfboards.blogspot.com/

"The worm has definitely turned for you my friend."


Thu Jun 18, 2009 12:22 pm
Report this post
Profile WWW
sage
User avatar

Joined: Tue Sep 16, 2008 7:32 am
Posts: 964
Location: Ormond Beach, FL
Reply with quote
Unread post Re: WL SUP paddle

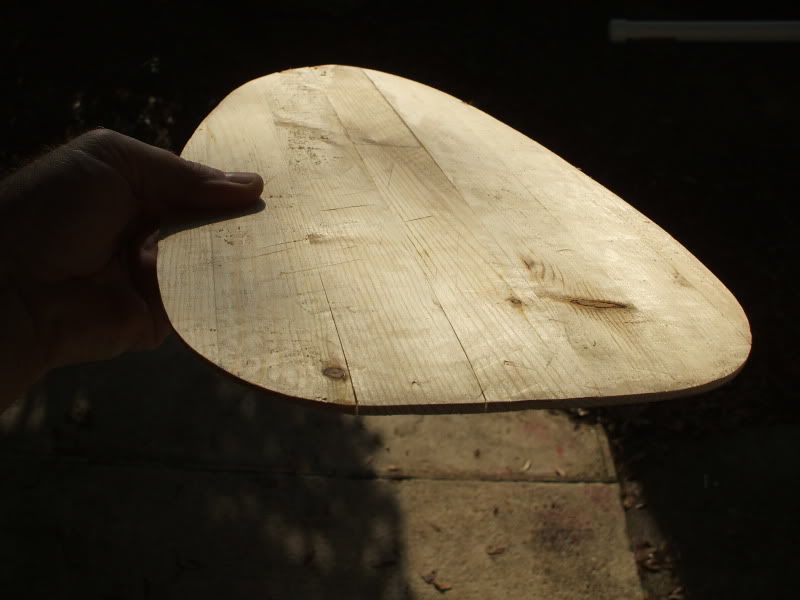

When I shape the blade I start on the outside and work my way around. Most of the work is done with either the block plane or spoke shave. I want a feather edge and the blade gets progressively thicker toward the center.


Now that the blade and shaft are rough shaped it's time for a test fit.

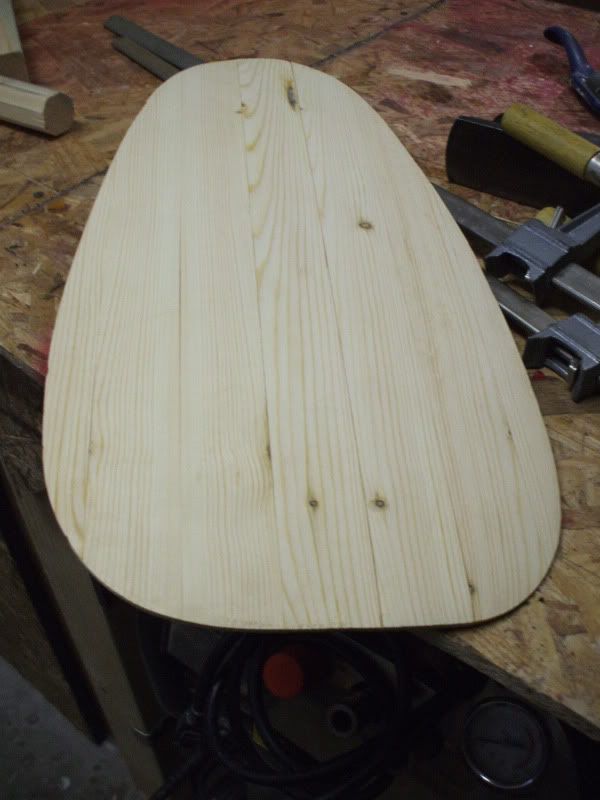

The fit looks good so I sand the blade on both sides.


_________________
http://woodylogicsurfboards.blogspot.com/

"The worm has definitely turned for you my friend."


Thu Jun 18, 2009 12:28 pm
Report this post
Profile WWW
sage
User avatar

Joined: Tue Sep 16, 2008 7:32 am
Posts: 964
Location: Ormond Beach, FL
Reply with quote
Unread post Re: WL SUP paddle

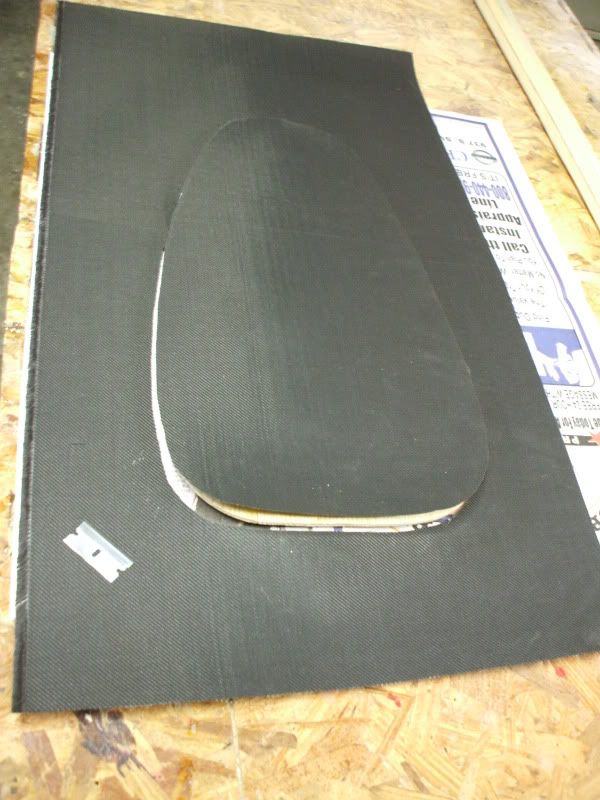

I use carbon fiber on my paddles because they need additional reinforcement. The blade will get carbon fiber and 4 oz. glass on one side and just 4 oz. glass on the other.


I cut the glass a little proud so it overhangs about 1/4" past the cf.


_________________
http://woodylogicsurfboards.blogspot.com/

"The worm has definitely turned for you my friend."


Thu Jun 18, 2009 12:34 pm
Report this post
Profile WWW
sage
User avatar

Joined: Tue Sep 16, 2008 7:32 am
Posts: 964
Location: Ormond Beach, FL
Reply with quote
Unread post Re: WL SUP paddle

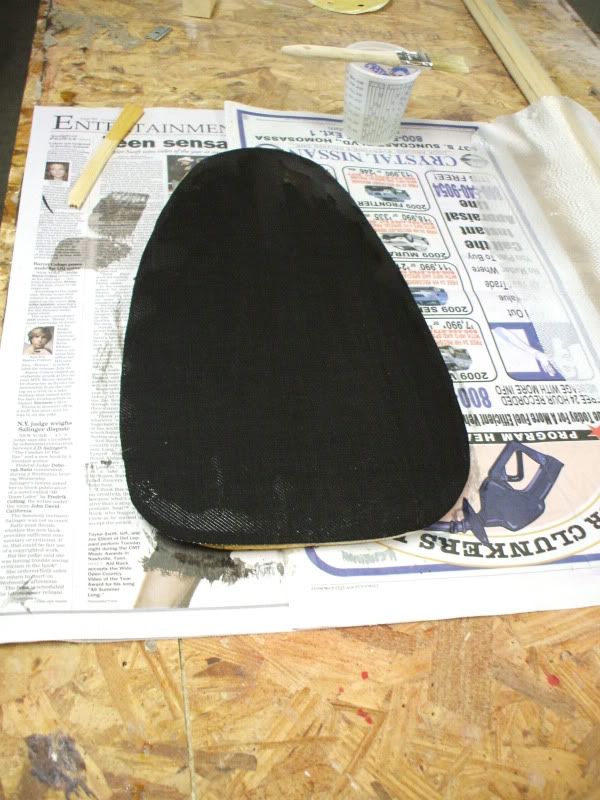

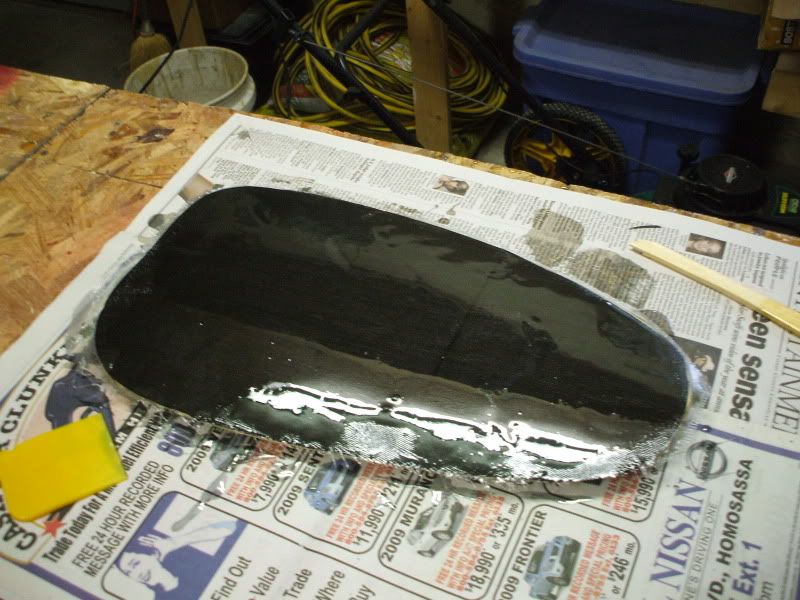

I apply a coat of epoxy to the blade and lay the cf down.


Right after that I lay the glass down and wet that out. The weight of the glass helps the cf contour to the feather edge.


I'll be down in Tampa for the next couple of days, so I'll update when I get back.

Boco

_________________
http://woodylogicsurfboards.blogspot.com/

"The worm has definitely turned for you my friend."


Thu Jun 18, 2009 12:39 pm
Report this post
Profile WWW
sage
User avatar

Joined: Tue Sep 16, 2008 7:32 am
Posts: 964
Location: Ormond Beach, FL
Reply with quote
Unread post Re: WL SUP paddle

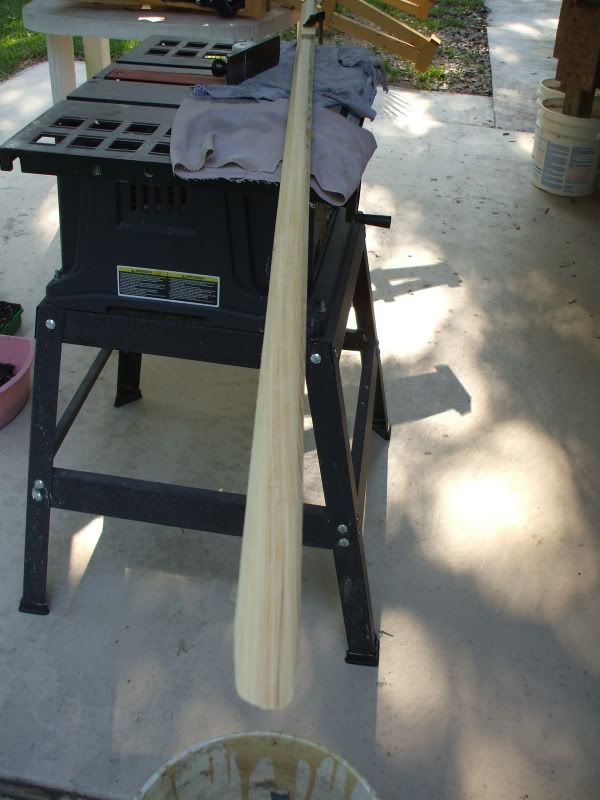

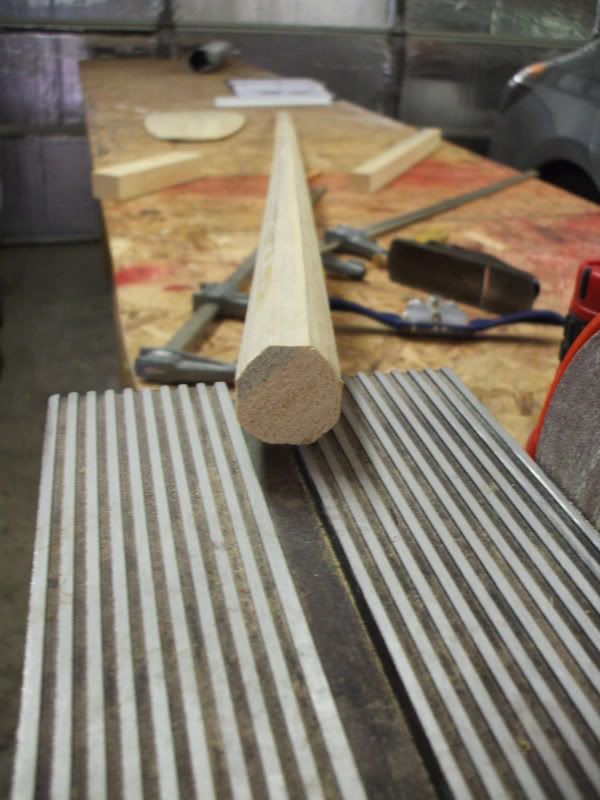

I rounded the shaft by planing the tips of the octagon with a block plane. I used an 80 grit sanding belt to get the final rounded shape. The last 1" isn't sanded round because the handle will be fitted to the shaft later.

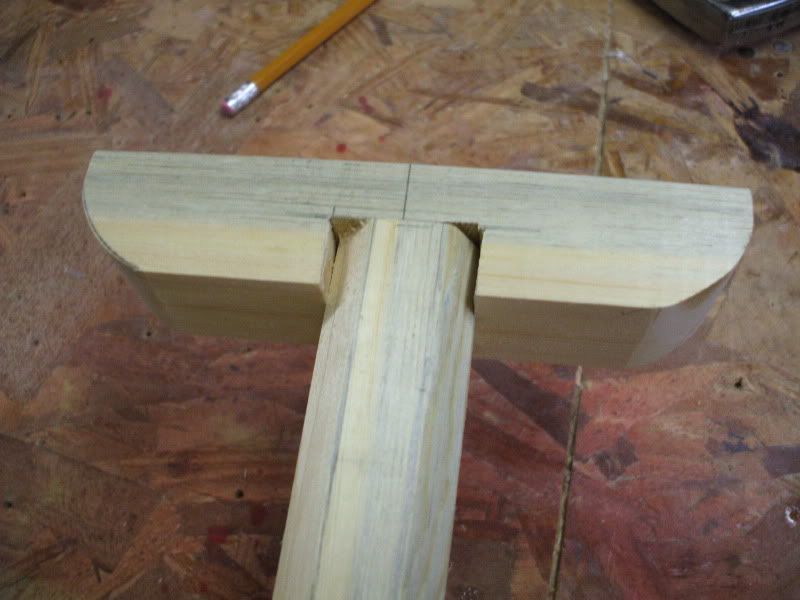

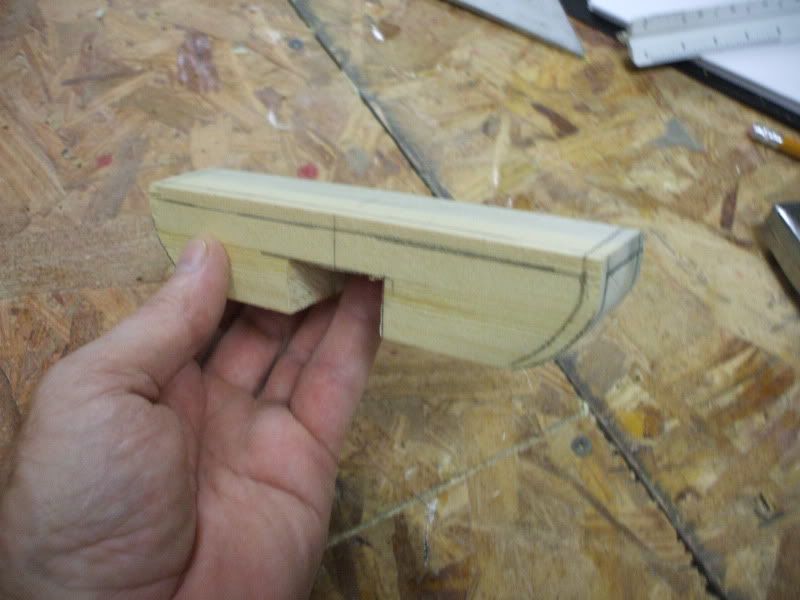

I made a simple handle that is comfortable once it's been chamfered.


It will be secured with a screw, glass and epoxy a little later.


_________________
http://woodylogicsurfboards.blogspot.com/

"The worm has definitely turned for you my friend."


Tue Jun 23, 2009 2:37 pm
Report this post
Profile WWW
sage

Joined: Thu May 21, 2009 5:48 pm
Posts: 1195
Location: Morpeth, Northumberland, UK
Reply with quote
Unread post Re: WL SUP paddle
thats looking pretty damn good Boco

Why just CF on one side?? is that an aesthetic choice or for any reason?? just curious

_________________
Abandon Hope All Ye Who Enter Here !!!!!!! - - - I did !!


Tue Jun 23, 2009 2:43 pm
Report this post
Profile
sage
User avatar

Joined: Tue Sep 16, 2008 7:32 am
Posts: 964
Location: Ormond Beach, FL
Reply with quote
Unread post Re: WL SUP paddle

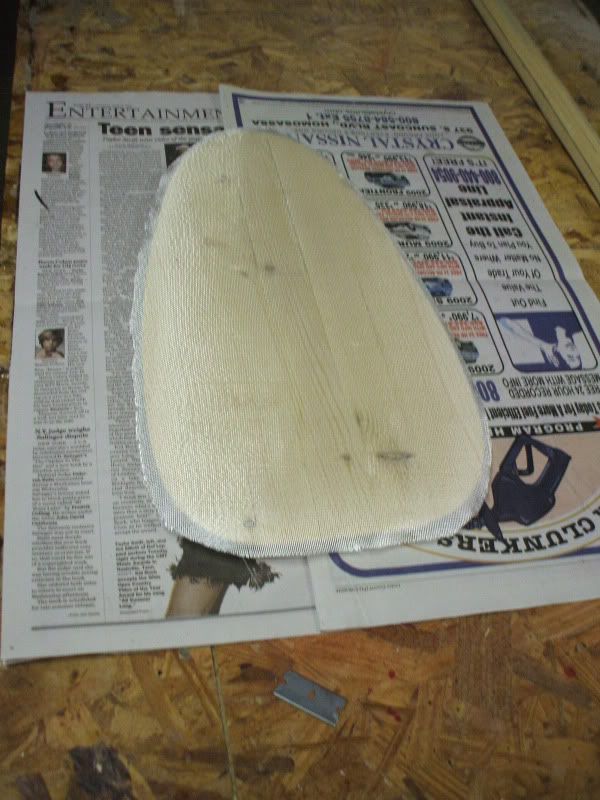

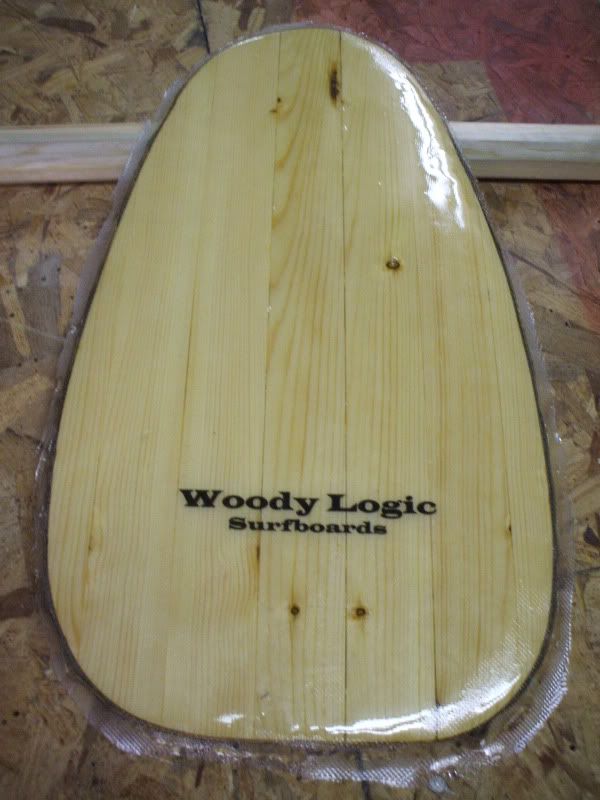

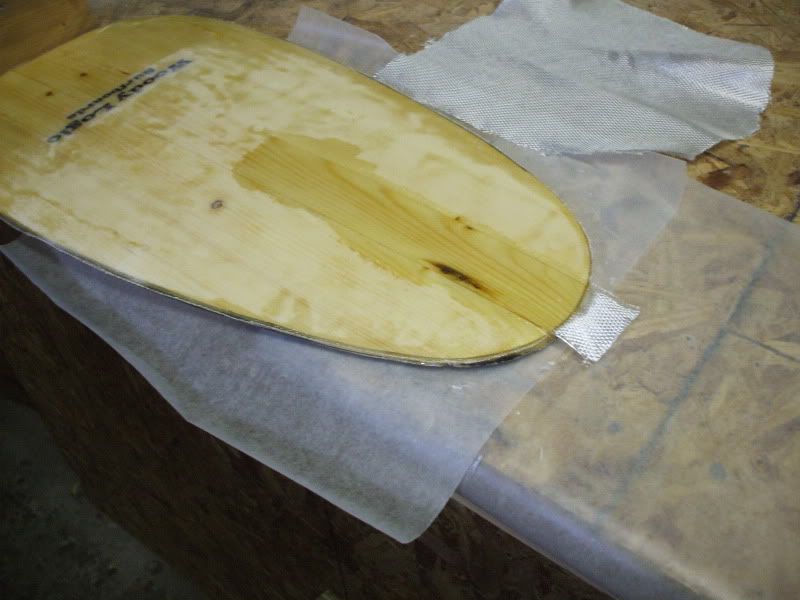

The backside to the blade was glassed and allowed to set-up for a couple of days.


The blade is sanded and prepared for glassing. I start by laying a strip of 4 oz. S-2 glass down where the blade meets the shaft. That little tongue will be wrapped when the shaft gets some glass.

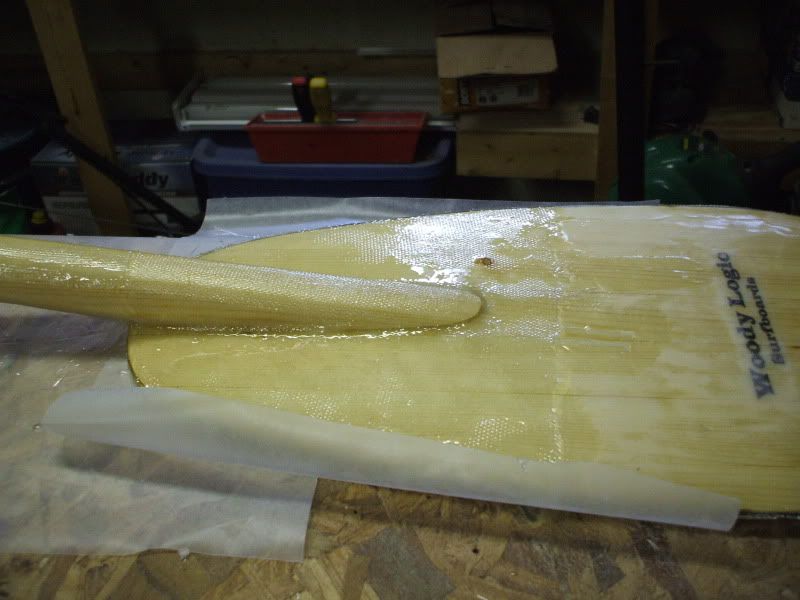

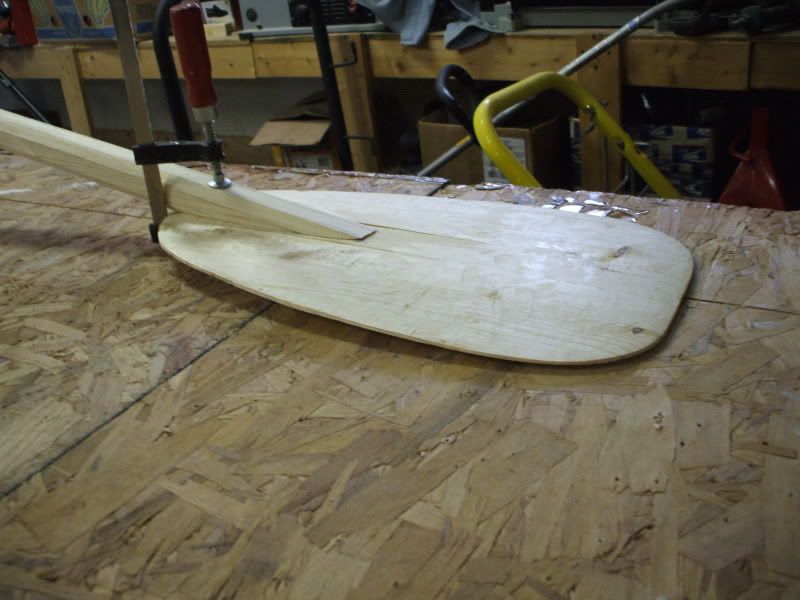

The shaft is set in place. I add fin rope on each side where the shaft meets the blade to create a fillet. The rope extends past the shaft and on the blade. It also goes up past the blade at the top and extend 8" up the shaft. Then a large piece of S-2 glass is laid over the shaft and blade. The last piece is more S-2 glass is wrapped around the shaft just above the blade to cover the tongue and fin rope.


Boco

_________________
http://woodylogicsurfboards.blogspot.com/

"The worm has definitely turned for you my friend."


Last edited by Boco-Rio on Tue Jun 23, 2009 2:59 pm, edited 1 time in total.



Tue Jun 23, 2009 2:49 pm
Report this post
Profile WWW
sage
User avatar

Joined: Tue Sep 16, 2008 7:32 am
Posts: 964
Location: Ormond Beach, FL
Reply with quote
Unread post Re: WL SUP paddle
StuMak wrote:
thats looking pretty damn good Boco

Why just CF on one side?? is that an aesthetic choice or for any reason?? just curious



I use to do it on both sides. It's a little over kill and I like the look of the natural wood where the shaft mounts to the blade. Also it's hard to make the cf conform to the shapes on that side.

Thanks for the positive feedback.

Boco

_________________
http://woodylogicsurfboards.blogspot.com/

"The worm has definitely turned for you my friend."


Tue Jun 23, 2009 2:55 pm
Report this post
Profile WWW
Display posts from previous:  Sort by
Reply to topic   [ 24 posts ]  Go to page 1, 2, 3  Next

Who is online

Users browsing this forum: No registered users and 4 guests


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:
cron
Powered by phpBB © 2000, 2002, 2005, 2007 phpBB Group.
Designed by STSoftware for PTF.
